本节概览：spring提供了两种整合kafka的方式：spring-integration-kafka 和 spring-kafka，本节只对spring-kafka进行介绍。

1 应用实例

1.1 maven配置

spring-kafka的版本为2.1.1.RELEASE

<dependency>
            <groupId>org.springframework.kafka</groupId>
            <artifactId>spring-kafka</artifactId>
            <version>2.1.1.RELEASE</version>
</dependency>

<groupId>org.springframework.kafka</groupId>

<artifactId>spring-kafka</artifactId>

<version>2.1.1.RELEASE</version>

</dependency>

对应spring的版本是5.0.3.RELEASE

<dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-beans</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-context</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>
        <dependency>
            <groupId>org.springframework</groupId>
            <artifactId>spring-core</artifactId>
            <version>5.0.3.RELEASE</version>
        </dependency>
        <dependency>
            <artifactId>spring-test</artifactId>
            <groupId>org.springframework</groupId>
            <version>5.0.3.RELEASE</version>
            <scope>test</scope>
        </dependency>

<groupId>org.springframework</groupId>

<artifactId>spring-beans</artifactId>

<version>5.0.3.RELEASE</version>

</dependency>

<groupId>org.springframework</groupId>

<artifactId>spring-context</artifactId>

<version>5.0.3.RELEASE</version>

</dependency>

<groupId>org.springframework</groupId>

<artifactId>spring-core</artifactId>

<version>5.0.3.RELEASE</version>

</dependency>

<artifactId>spring-test</artifactId>

<groupId>org.springframework</groupId>

<version>5.0.3.RELEASE</version>

</dependency>

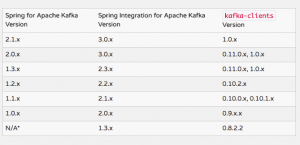

spring-kafka和kafak-clients版本映射关系，以及spring-integration和kafka-client的映射关系如下图

1.2 生产者实例

1.2.1 配置文件

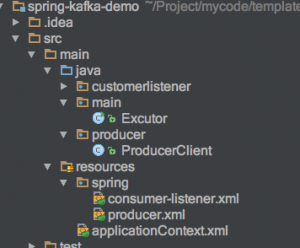

定义一个producer.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">

    <context:component-scan base-package="producer" />


    <bean id="producerProperties" class="java.util.HashMap">
        <constructor-arg>
            <map>
                <entry key="bootstrap.servers" value="localhost:9092"/>
                <entry key="acks" value="all"/>
                <entry key ="retries" value="0"/>
                <entry key="batch.size" value="16384"/>
                <entry key="buffer.memory" value="33554432"/>
                <entry key="key.serializer" value="org.apache.kafka.common.serialization.StringSerializer"/>
                <entry key="value.serializer" value="org.apache.kafka.common.serialization.StringSerializer"/>
            </map>
        </constructor-arg>
    </bean>

    <bean id="producerFactory" class="org.springframework.kafka.core.DefaultKafkaProducerFactory">
        <constructor-arg>
            <ref bean="producerProperties"/>
        </constructor-arg>
    </bean>

    <bean id="kafkaTemplate" class="org.springframework.kafka.core.KafkaTemplate">
        <constructor-arg ref="producerFactory"/>
        <constructor-arg name="autoFlush" value="true"/>
        <property name="defaultTopic" value="myTopic"/>
    </bean>

</beans>

<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:context="http://www.springframework.org/schema/context"

xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop"

xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context.xsd

http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">

<context:component-scan base-package="producer" />

<constructor-arg>

<map>

</map>

</constructor-arg>

</bean>

<constructor-arg>

</constructor-arg>

</bean>

<constructor-arg ref="producerFactory"/>

<constructor-arg name="autoFlush" value="true"/>

</bean>

</beans>

如果需要支持事务，则需要进行配置一个transactionIdPrefix的参数。

 <bean id="producerFactory" class="org.springframework.kafka.core.DefaultKafkaProducerFactory">
        <constructor-arg>
            <ref bean="producerProperties"/>
        </constructor-arg>
        <property name= "transactionIdPrefix" value="test-demo" />
    </bean>

<constructor-arg>

</constructor-arg>

</bean>

2、application.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">


    <import resource="classpath:spring/producer.xml"/>
</beans>

<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:context="http://www.springframework.org/schema/context"

xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop"

xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context.xsd

http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">

</beans>

1.2.2 定义一个ProducerClient

@Component
public class ProducerClient {
    @Autowired
    private KafkaTemplate<String,String> kafkaTemplate;

    public void sendMessage(String topicName,String message){
        kafkaTemplate.send(topicName,message);
    }

}

@Component

public class ProducerClient {

@Autowired

private KafkaTemplate<String,String> kafkaTemplate;

public void sendMessage(String topicName,String message){

kafkaTemplate.send(topicName,message);

}

1.2.3 测试

public class Excutor {
    public static void main(String[] args) {

        ApplicationContext context = new ClassPathXmlApplicationContext("classpath:/applicationContext.xml");
        System.out.printf("启动Producer");
        ProducerClient producerClient = (ProducerClient) context.getBean("producerClient");
        producerClient.sendMessage("test","data:20180329");

    }
}

public class Excutor {

public static void main(String[] args) {

ApplicationContext context = new ClassPathXmlApplicationContext("classpath:/applicationContext.xml");

System.out.printf("启动Producer");

ProducerClient producerClient = (ProducerClient) context.getBean("producerClient");

producerClient.sendMessage("test","data:20180329");

}

1.3 单个消费者实例

分为两种类型：单个消费实例和多个消费者实例。

1.3.1 配置文件

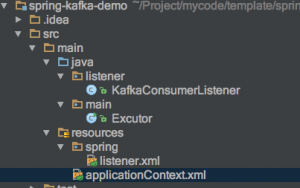

定义一个listener.xml文件

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
       xmlns:context="http://www.springframework.org/schema/context"
       xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop"
       xsi:schemaLocation="http://www.springframework.org/schema/beans
	http://www.springframework.org/schema/beans/spring-beans.xsd
	http://www.springframework.org/schema/context
	http://www.springframework.org/schema/context/spring-context.xsd
	http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">

    <context:component-scan base-package="listener" />
    <!--<context:component-scan base-package="concurrent" />-->


    <bean id="consumerProperties" class="java.util.HashMap">
        <constructor-arg>
            <map>
                <entry key="bootstrap.servers" value="localhost:9092"/>
                <entry key="group.id" value="group1"/>
                <entry key="enable.auto.commit" value="true"/>
                <entry key="auto.commit.interval.ms" value="1000"/>
                <entry key="session.timeout.ms" value="30000"/>
                <entry key="key.deserializer" value="org.apache.kafka.common.serialization.IntegerDeserializer"/>
                <entry key="value.deserializer" value="org.apache.kafka.common.serialization.StringDeserializer"/>
            </map>
        </constructor-arg>
    </bean>

    <bean id="consumerFactory" class="org.springframework.kafka.core.DefaultKafkaConsumerFactory">
        <constructor-arg>
            <ref bean="consumerProperties"/>
        </constructor-arg>
    </bean>

    <bean id="containerProperties" class="org.springframework.kafka.listener.config.ContainerProperties">
        <constructor-arg value="test"/>
        <property name="messageListener" ref="kafkaConsumerListener"/>
    </bean>

    <bean id="messageListenerContainer" class="org.springframework.kafka.listener.KafkaMessageListenerContainer" >
        <constructor-arg ref="consumerFactory"/>
        <constructor-arg ref="containerProperties"/>
    </bean>

</beans>

<?xml version="1.0" encoding="UTF-8"?>

<beans xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:context="http://www.springframework.org/schema/context"

xmlns="http://www.springframework.org/schema/beans" xmlns:aop="http://www.springframework.org/schema/aop"

xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context.xsd

http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop.xsd">

<context:component-scan base-package="listener" />

<constructor-arg>

<map>

</map>

</constructor-arg>

</bean>

<constructor-arg>

</constructor-arg>

</bean>

<constructor-arg value="test"/>

</bean>

<constructor-arg ref="consumerFactory"/>

<constructor-arg ref="containerProperties"/>

</bean>

</beans>

如果需要配置事务，实现Consume-transform-Prodcue，则如下配置一个kafkaTransactionMaanager

<bean id="containerProperties" class="org.springframework.kafka.listener.config.ContainerProperties">
        <constructor-arg value="test"/>
        <property name="messageListener" ref="kafkaConsumerListener"/>
        <property name="transactionManager" ref="transactionManager">
    </bean>


     <bean id="kafkaTransactionManager" class="org.springframework.kafka.transaction.KafkaTransactionManager">
        <constructor-arg>
            <ref bean="producerFactory"/>
        </constructor-arg>
    </bean>

<constructor-arg value="test"/>

</bean>

<constructor-arg>

</constructor-arg>

</bean>

如果需要配置一个正则表达式的主题，指定一个Pattern对象

  <bean id="containerProperties" class="org.springframework.kafka.listener.config.ContainerProperties">
        <constructor-arg ref="partern"/>
   </bean>

<bean class="java.util.regex.Pattern" factory-method="compile">
    <constructor-arg value=".*some pattern.*" />
    <constructor-arg type="int" value="#{T(java.util.regex.Pattern).DOTALL | T(java.util.regex.Pattern).CASE_INSENSITIVE}" />
</bean>

<constructor-arg ref="partern"/>

</bean>

<constructor-arg value=".*some pattern.*" />

<constructor-arg type="int" value="#{T(java.util.regex.Pattern).DOTALL | T(java.util.regex.Pattern).CASE_INSENSITIVE}" />

</bean>

1.3.2 定义一个messagListener

在上面配置文件中构建ContainerProperties时的属性messaeListener指定。

@Component
public class KafkaConsumerListener implements MessageListener<String, String> {
    public void onMessage(ConsumerRecord<String, String> integerStringConsumerRecord) {
        System.out.printf("offset= %d, key= %s, value= %s\n",
                integerStringConsumerRecord.offset(),
                integerStringConsumerRecord.key(),
                integerStringConsumerRecord.value());
    }
}

@Component

public class KafkaConsumerListener implements MessageListener<String, String> {

public void onMessage(ConsumerRecord<String, String> integerStringConsumerRecord) {

System.out.printf("offset= %d, key= %s, value= %s\n",

integerStringConsumerRecord.offset(),

integerStringConsumerRecord.key(),

integerStringConsumerRecord.value());

}

1.3.3 测试

public class Excutor {
    public static void main(String[] args) {
        ApplicationContext context = new ClassPathXmlApplicationContext("classpath:/applicationContext.xml");
        System.out.printf("启动listener");
        while (true) {

        }
    }
}

public class Excutor {

public static void main(String[] args) {

ApplicationContext context = new ClassPathXmlApplicationContext("classpath:/applicationContext.xml");

System.out.printf("启动listener");

while (true) {

}

此时可以向kafka发送消息（发送消息可以直接使用kafka自带的脚本进行），然后就可以看到日志了：

08:38:58.598 [messageListenerContainer-C-1] DEBUG org.springframework.kafka.listener.KafkaMessageListenerContainer$ListenerConsumer – Received: 2 records
offset= 51, key= null, value= message-1
offset= 52, key= null, value= message-2

1.4 多个消费者实例

通过定义一个ConcurrentMessageListenerContainer来替换上面的KafkaMessageListenerContainer

如上面listener.xml配置中

  <bean id="messageListenerContainer" class="org.springframework.kafka.listener.KafkaMessageListenerContainer" >
        <constructor-arg ref="consumerFactory"/>
        <constructor-arg ref="containerProperties"/>
    </bean>

<constructor-arg ref="consumerFactory"/>

<constructor-arg ref="containerProperties"/>

</bean>

替换为如下，配置效果就是相当于部署了2个消费者。

   <bean id="concurrentMessageListenerContainer" class="org.springframework.kafka.listener.ConcurrentMessageListenerContainer" >
        <constructor-arg ref="consumerFactory"/>
        <constructor-arg ref="containerProperties"/>
        <property name="concurrency" value="2"/>
    </bean>

<constructor-arg ref="consumerFactory"/>

<constructor-arg ref="containerProperties"/>

</bean>

2 实现生产者

为了执行生产者发送消息，spring-kafka提供了一个KafkaTemplate，让我们只关心 send 消息不需要再关注创建producer和关闭producer，还提供了事务的相关操作（Kafka从0.11.0.0版本以上）。

2.1发送消息

提供了如下接口，可以支持发送消息

ListenableFuture<SendResult<K, V>> sendDefault(V data);

ListenableFuture<SendResult<K, V>> sendDefault(K key, V data);

ListenableFuture<SendResult<K, V>> sendDefault(Integer partition, K key, V data);

ListenableFuture<SendResult<K, V>> sendDefault(Integer partition, Long timestamp, K key, V data);

ListenableFuture<SendResult<K, V>> send(String topic, V data);

ListenableFuture<SendResult<K, V>> send(String topic, K key, V data)

ListenableFuture<SendResult<K, V>> send(String topic, Integer partition, K key, V data);

LitenableFuture<SendResult<K, V>> send(String topic, Integer partition, Long timestamp, K key, V data);

ListenableFuture<SendResult<K, V>> send(ProducerRecord<K, V> record);

ListenableFuture<SendResult<K, V>> send(Message<?> message);

ListenableFuture<SendResult<K, V>> sendDefault(V data);

ListenableFuture<SendResult<K, V>> sendDefault(K key, V data);

ListenableFuture<SendResult<K, V>> sendDefault(Integer partition, K key, V data);

ListenableFuture<SendResult<K, V>> sendDefault(Integer partition, Long timestamp, K key, V data);

ListenableFuture<SendResult<K, V>> send(String topic, V data);

ListenableFuture<SendResult<K, V>> send(String topic, K key, V data)

ListenableFuture<SendResult<K, V>> send(String topic, Integer partition, K key, V data);

LitenableFuture<SendResult<K, V>> send(String topic, Integer partition, Long timestamp, K key, V data);

ListenableFuture<SendResult<K, V>> send(ProducerRecord<K, V> record);

ListenableFuture<SendResult<K, V>> send(Message<?> message);

除了上面send操作还提供了如下操作，支持如下接口发送消息

<T> T execute(ProducerCallback<K, V, T> callback);

1	<T> T execute(ProducerCallback<K, V, T> callback);

关于ProducerCallback的代码如下：

interface ProducerCallback<K, V, T> {
        T doInKafka(Producer<K, V> producer);
}

interface ProducerCallback<K, V, T> {

T doInKafka(Producer<K, V> producer);

}

2.2 事务相关操作

提供了如下两个支持事务的操作：

void sendOffsetsToTransaction(Map<TopicPartition, OffsetAndMetadata> offsets);

void sendOffsetsToTransaction(Map<TopicPartition, OffsetAndMetadata> offsets, String consumerGroupId);

void sendOffsetsToTransaction(Map<TopicPartition, OffsetAndMetadata> offsets);

void sendOffsetsToTransaction(Map<TopicPartition, OffsetAndMetadata> offsets, String consumerGroupId);

3 实现消费者

如果没有spring-kafak，我们需要自己创建消费者、还需要有个定时任务保证消费者一直运行获取消息、处理消息之后提交偏移量以及事务一致性（Kafka从0.11.0.0版本以上）等操作。spring-kafka封装了这些操作，只需要使用者关注消费消息的逻辑。一个流程图如下:

3.1 创建消费者

spring-kafka可以创建单个消费者，而且还支持创建多个消费者：

1、创建单个消费者

KafkaMessageListenerContainer 创建一个消费者，支持创建两种类型消费者：消费者群组类型和独立消费者类型。

2、创建多个消费者

ConcurrentMessageListenerContainer可以创建多个消费者，可以通过并发数属性来设置创建多少个消费者，ConcurrentMessageListenerContainer作用其实和部署多个消费者服务是一样的效果。支持创建两种类型消费者：消费者群组类型和独立消费者类。

（1）关于ConcurrentMessageListenerContainer的并发数说明

这个并发数是指一个app实例创建多少个消费者。如果我们部署多个服务，比如10台服务，而分区个数时20，此时可以设置并发数是2，如果分区个数小于10，此时设置并发是1就可以了。

注意：消费消息时使用多线程消费消息，这种多线程处理可以在自己实现消费消息逻辑中自己实现。=

3.2 定时任务

KafkaMessageListenerContainer实现了Lifecycle接口的start方法，所以在上下文初始化时会调用这个对象的start方法。

@Override
public final void start() {
	....
        // 启动
	doStart();
	....
}

@Override

public final void start() {

....

// 启动

doStart();

....

}

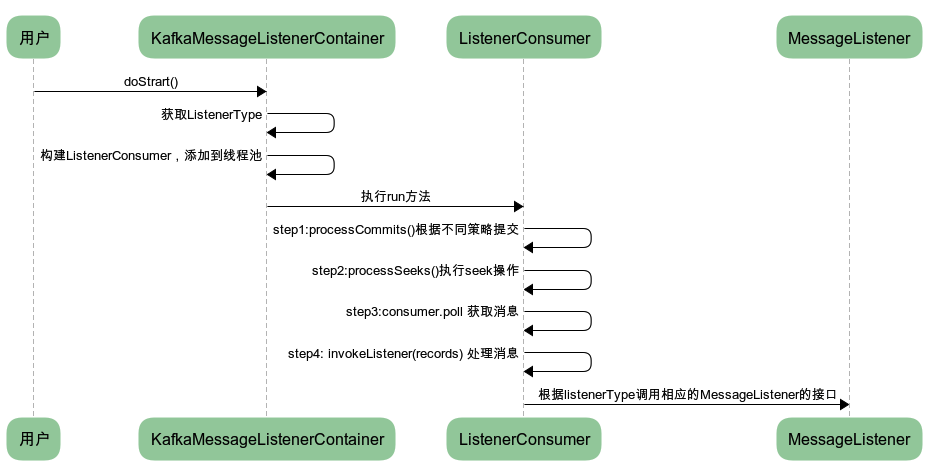

KafkaMessageListenerContainer通过doStart方法定义了处理消息逻辑，所以启动任务的入口可以看成是:

KafkaMessageListenerContainer#doStart()

1	KafkaMessageListenerContainer#doStart()

3.3 处理消息模板

KafkaMessageListnerContailer#ListenerConsumer#run中实现了处理一个消息泛型逻辑：

while(true){

    // 处理提交策略，可以概况为两类：根据时间和次数。
    // （1）个数策略：消息个数处理超过阈值ackcOunt
    // （2）时间策略：执行时间超过阈值ackTime
    // 把acks队列中只转移到offesets中值，如果提交策略满足就处理offsets中值。
    processCommits();

    // 执行seek操作。处理offsets队列中值，依次进行seek操作，保证在提交出现问题时，不重复消费消息。
    processSeeks();

    // 获取消息
    ConsumerRecords<K, V> records = this.consumer.poll(this.containerProperties.getPollTimeout());

    // 通过listner处理消息。根据不同listenerType调用相关接口处理消息。如果提交策略AckMode#Record模式，则立刻执行commit，否    则添加便宜量信息到ack队列。
    invokeListener(records);

}

while(true){

// 处理提交策略，可以概况为两类：根据时间和次数。

// （1）个数策略：消息个数处理超过阈值ackcOunt

// （2）时间策略：执行时间超过阈值ackTime

// 把acks队列中只转移到offesets中值，如果提交策略满足就处理offsets中值。

processCommits();

// 执行seek操作。处理offsets队列中值，依次进行seek操作，保证在提交出现问题时，不重复消费消息。

processSeeks();

// 获取消息

ConsumerRecords<K, V> records = this.consumer.poll(this.containerProperties.getPollTimeout());

// 通过listner处理消息。根据不同listenerType调用相关接口处理消息。如果提交策略AckMode#Record模式，则立刻执行commit，否则添加便宜量信息到ack队列。

invokeListener(records);

}

3.4 用户只关注处理消息逻辑

在使用spring-kafka，我们只需要关注处理消息逻辑，通过继承实现MessageListener来实现处理消息的逻辑，主要包含四种类型Listener：

public enum ListenerType {

    /**
     * Acknowledging and consumer aware.
     */
    ACKNOWLEDGING_CONSUMER_AWARE,

    /**
     * Consumer aware.
     */
    CONSUMER_AWARE,

    /**
     * Acknowledging.
     */
    ACKNOWLEDGING,

    /**
     * Simple.
     */
    SIMPLE

}

public enum ListenerType {

/**

* Acknowledging and consumer aware.

ACKNOWLEDGING_CONSUMER_AWARE,

/**

* Consumer aware.

CONSUMER_AWARE,

/**

* Acknowledging.

ACKNOWLEDGING,

/**

* Simple.

SIMPLE

}

SIMPLE，就是在处理消息时，不需要考虑提交偏移量和使用Consumer对象。

void onMessage(T data);

1	void onMessage(T data);

ACKNOWLEDGING, 当需要手动提交时时，而不是自动提交或者spring-kafka自己实现提交的方式时，需要如下接口中acknowledment的acknowlegge()方法来提交偏移量

default void onMessage(T data, Acknowledgment acknowledgment) {
    throw new UnsupportedOperationException("Container should never call this");
}

default void onMessage(T data, Acknowledgment acknowledgment) {

throw new UnsupportedOperationException("Container should never call this");

}

CONSUMER_AWARE，类似Spring IOC 的ApplicationContextAware功能，如果我们在消费消息时，需要用到consumer对象，则需要使用这个类型。

default void onMessage(T data, Consumer<?, ?> consumer) {
        throw new UnsupportedOperationException("Container should never call this");
 }

default void onMessage(T data, Consumer<?, ?> consumer) {

throw new UnsupportedOperationException("Container should never call this");

}

ACKNOWLEDGING_CONSUMER_AWARE，同时支持ACKNOWLEDGING和CONSUMER_AWARE两种类型。

default void onMessage(T data, Acknowledgment acknowledgment, Consumer<?, ?> consumer) {
        throw new UnsupportedOperationException("Container should never call this");
    }

default void onMessage(T data, Acknowledgment acknowledgment, Consumer<?, ?> consumer) {

throw new UnsupportedOperationException("Container should never call this");

}

如何确定ListenerType类型？可以根据继承不同类型MeassgeListener可以确定ListenerType:

public final class ListenerUtils {

    private ListenerUtils() {
        super();
    }

    public static ListenerType determineListenerType(Object listener) {
        Assert.notNull(listener, "Listener cannot be null");
        ListenerType listenerType;
        if (listener instanceof AcknowledgingConsumerAwareMessageListener
                || listener instanceof BatchAcknowledgingConsumerAwareMessageListener) {
            listenerType = ListenerType.ACKNOWLEDGING_CONSUMER_AWARE;
        }
        else if (listener instanceof ConsumerAwareMessageListener
                || listener instanceof BatchConsumerAwareMessageListener) {
            listenerType = ListenerType.CONSUMER_AWARE;
        }
        else if (listener instanceof AcknowledgingMessageListener
                || listener instanceof BatchAcknowledgingMessageListener) {
            listenerType = ListenerType.ACKNOWLEDGING;
        }
        else if (listener instanceof GenericMessageListener) {
            listenerType = ListenerType.SIMPLE;
        }
        else {
            throw new IllegalArgumentException("Unsupported listener type: " + listener.getClass().getName());
        }
        return listenerType;
    }

public final class ListenerUtils {

private ListenerUtils() {

super();

}

public static ListenerType determineListenerType(Object listener) {

Assert.notNull(listener, "Listener cannot be null");

ListenerType listenerType;

if (listener instanceof AcknowledgingConsumerAwareMessageListener

|| listener instanceof BatchAcknowledgingConsumerAwareMessageListener) {

listenerType = ListenerType.ACKNOWLEDGING_CONSUMER_AWARE;

}

else if (listener instanceof ConsumerAwareMessageListener

|| listener instanceof BatchConsumerAwareMessageListener) {

listenerType = ListenerType.CONSUMER_AWARE;

}

else if (listener instanceof AcknowledgingMessageListener

|| listener instanceof BatchAcknowledgingMessageListener) {

listenerType = ListenerType.ACKNOWLEDGING;

}

else if (listener instanceof GenericMessageListener) {

listenerType = ListenerType.SIMPLE;

}

else {

throw new IllegalArgumentException("Unsupported listener type: " + listener.getClass().getName());

}

return listenerType;

}

如何使用ListenerType？在KafkaMessageLisnerContailer中根据不同listenerType来处调用不同接口

private RuntimeException doInvokeRecordListener(final ConsumerRecord<K, V> record,
				@SuppressWarnings("rawtypes") Producer producer,
				Iterator<ConsumerRecord<K, V>> iterator) throws Error {
			try {
				switch (this.listenerType) {
					case ACKNOWLEDGING_CONSUMER_AWARE:
						this.listener.onMessage(record,
								this.isAnyManualAck
										? new ConsumerAcknowledgment(record)
										: null, this.consumer);
						break;
					case CONSUMER_AWARE:
						this.listener.onMessage(record, this.consumer);
						break;
					case ACKNOWLEDGING:
						this.listener.onMessage(record,
								this.isAnyManualAck
										? new ConsumerAcknowledgment(record)
										: null);
						break;
					case SIMPLE:
						this.listener.onMessage(record);
						break;
				}
...
}

private RuntimeException doInvokeRecordListener(final ConsumerRecord<K, V> record,

@SuppressWarnings("rawtypes") Producer producer,

Iterator<ConsumerRecord<K, V>> iterator) throws Error {

try {

switch (this.listenerType) {

case ACKNOWLEDGING_CONSUMER_AWARE:

this.listener.onMessage(record,

this.isAnyManualAck

? new ConsumerAcknowledgment(record)

: null, this.consumer);

break;

case CONSUMER_AWARE:

this.listener.onMessage(record, this.consumer);

break;

case ACKNOWLEDGING:

this.listener.onMessage(record,

this.isAnyManualAck

? new ConsumerAcknowledgment(record)

: null);

break;

case SIMPLE:

this.listener.onMessage(record);

break;

}

...

}

3.5 提交策略

spring-kafka负责提交策略和自己手动提交，可以参考AckMode

public enum AckMode {
        RECORD,   //每处理一个消息，就提交一次
        BATCH,    //将上一次poll得到消息进行提交
        TIME,     //达到段时间间隔，就提交
        COUNT,      //达到次数，就提交
        COUNT_TIME, //达到次数和一段时间间隔，就提交
        MANUAL  // 手动提交
        MANUAL_IMMEDIATE  //每处理一条消息就提交一次
    }

public enum AckMode {

RECORD, //每处理一个消息，就提交一次

BATCH, //将上一次poll得到消息进行提交

TIME, //达到段时间间隔，就提交

COUNT, //达到次数，就提交

COUNT_TIME, //达到次数和一段时间间隔，就提交

MANUAL // 手动提交

MANUAL_IMMEDIATE //每处理一条消息就提交一次

}

具体可以分为两类：

1、spring-kafak负责提交

（1）RECORD, 每处理一个消息，就提交一次。和MANUAL_IMMEDIATE类似，只是这里是通过spring-kafka自己操作，而MsManualImmediateAck需要我们自己在代码里面调用Acknowledgment#acknowledge

（2）BATCH, 将上一次poll得到消息进行提交。和MANUAL类似，BATH是通过spring-kafka操作，而MANUAL模式是用户自己通过调用Acknowledgment#acknowledge来执行。

（3）TIME, 达到段时间间隔，就提交

（4）COUNT, 达到次数，就提交

（5）COUNT_TIME, 达到次数和时间间隔两个条件，就提交

2、用户自己手动提交，通过在代码里面调用Acknowledgment#acknowledge()进行提交。

（1）MANUAL：调用Acknowledgment#acknowledge可以先放置到offts中，到时候在processCommits中进行处理。

（2） MANUAL_IMMEDIATE 处理完消息,调用Acknowledgment#acknowledge执行立刻提交。

在这种模式下，自己写提交偏移量逻辑，spring-kafka不负责提交而且也不是kafka的自动提交模式。此时可以继承ListenerType为ACKNOWLEDGING或者ACKNOWLEDGING_CONSUMER_AWARE类型的MessageListener，然后使用如下接口参数中acknowledgment#ackknowlege()方法来提交。

default void onMessage(T data, Acknowledgment acknowledgment) {
		throw new UnsupportedOperationException("Container should never call this");
}

default void onMessage(T data, Acknowledgment acknowledgment, Consumer<?, ?> consumer) {
	throw new UnsupportedOperationException("Container should never call this");
}

default void onMessage(T data, Acknowledgment acknowledgment) {

throw new UnsupportedOperationException("Container should never call this");

}

default void onMessage(T data, Acknowledgment acknowledgment, Consumer<?, ?> consumer) {

throw new UnsupportedOperationException("Container should never call this");

}

举例如下：

public class AckDemo implements AcknowledgingMessageListener {
    public void onMessage(ConsumerRecord data, Acknowledgment acknowledgment) {
        // 1.处理消息
        process(data);

        // 2.手动提交
        acknowledgment.acknowledge();
    }
}

public class AckDemo implements AcknowledgingMessageListener {

public void onMessage(ConsumerRecord data, Acknowledgment acknowledgment) {

// 1.处理消息

process(data);

// 2.手动提交

acknowledgment.acknowledge();

}

3.6 事务性

事务性介绍可以参考：

Kafka生产者事务和幂等

3.6.1 KafkaTransactionManager

1、doBegine执行初始化事务和开启事务：

在doBegin中通过如下 ProducerFactoryUtils#getTransactionalResourceHolder方法创建KafkaResourceHolder（当成数据库的Connectiion），并执行初始化事务（initTransactions()）和开启事务（begineTransactions()），如下：

====================================
类名：ProducerFactoryUtils
====================================
/**
     * Obtain a Producer that is synchronized with the current transaction, if any.
     * @param producerFactory the ConnectionFactory to obtain a Channel for
     * @param <K> the key type.
     * @param <V> the value type.
     * @return the resource holder.
     */
    public static <K, V> KafkaResourceHolder<K, V> getTransactionalResourceHolder(
            final ProducerFactory<K, V> producerFactory) {

        Assert.notNull(producerFactory, "ProducerFactory must not be null");

        // 1.对于每一个线程会生成一个唯一key，然后根据key去查找resourceHolder
        @SuppressWarnings("unchecked")
        KafkaResourceHolder<K, V> resourceHolder = (KafkaResourceHolder<K, V>) TransactionSynchronizationManager
                .getResource(producerFactory);
        if (resourceHolder == null) {
            // 2.创建一个消费者
            Producer<K, V> producer = producerFactory.createProducer();
            // 3.开启事务
            producer.beginTransaction();
            resourceHolder = new KafkaResourceHolder<K, V>(producer);
            bindResourceToTransaction(resourceHolder, producerFactory);
        }
        return resourceHolder;
    }

====================================

类名：ProducerFactoryUtils

====================================

/**

* Obtain a Producer that is synchronized with the current transaction, if any.

* @param producerFactory the ConnectionFactory to obtain a Channel for

* @param <K> the key type.

* @param <V> the value type.

* @return the resource holder.

public static <K, V> KafkaResourceHolder<K, V> getTransactionalResourceHolder(

final ProducerFactory<K, V> producerFactory) {

Assert.notNull(producerFactory, "ProducerFactory must not be null");

// 1.对于每一个线程会生成一个唯一key，然后根据key去查找resourceHolder

@SuppressWarnings("unchecked")

KafkaResourceHolder<K, V> resourceHolder = (KafkaResourceHolder<K, V>) TransactionSynchronizationManager

.getResource(producerFactory);

if (resourceHolder == null) {

// 2.创建一个消费者

Producer<K, V> producer = producerFactory.createProducer();

// 3.开启事务

producer.beginTransaction();

resourceHolder = new KafkaResourceHolder<K, V>(producer);

bindResourceToTransaction(resourceHolder, producerFactory);

}

return resourceHolder;

}

创建生成者，并初始化事务

====================================
类名：DefaultKafkaProducerFactory
====================================
protected Producer<K, V> createTransactionalProducer() {
        Producer<K, V> producer = this.cache.poll();
        if (producer == null) {
            Map<String, Object> configs = new HashMap<>(this.configs);
            // 对于每一次生成producer时，都设置一个不同的transactionId
            configs.put(ProducerConfig.TRANSACTIONAL_ID_CONFIG,
                    this.transactionIdPrefix + this.transactionIdSuffix.getAndIncrement());
            producer = new KafkaProducer<K, V>(configs, this.keySerializer, this.valueSerializer);
            // 1.初始化事务。
            producer.initTransactions();
            return new CloseSafeProducer<K, V>(producer, this.cache);
        }
        else {
            return producer;
        }
    }

====================================

类名：DefaultKafkaProducerFactory

====================================

protected Producer<K, V> createTransactionalProducer() {

Producer<K, V> producer = this.cache.poll();

if (producer == null) {

Map<String, Object> configs = new HashMap<>(this.configs);

// 对于每一次生成producer时，都设置一个不同的transactionId

configs.put(ProducerConfig.TRANSACTIONAL_ID_CONFIG,

this.transactionIdPrefix + this.transactionIdSuffix.getAndIncrement());

producer = new KafkaProducer<K, V>(configs, this.keySerializer, this.valueSerializer);

// 1.初始化事务。

producer.initTransactions();

return new CloseSafeProducer<K, V>(producer, this.cache);

}

else {

return producer;

}

2、doCommit提交事务

protected void doCommit(DefaultTransactionStatus status) {
        @SuppressWarnings("unchecked")
        KafkaTransactionObject<K, V> txObject = (KafkaTransactionObject<K, V>) status.getTransaction();
        KafkaResourceHolder<K, V> resourceHolder = txObject.getResourceHolder();
                          // 提交事务
        resourceHolder.commit();
}

protected void doCommit(DefaultTransactionStatus status) {

@SuppressWarnings("unchecked")

KafkaTransactionObject<K, V> txObject = (KafkaTransactionObject<K, V>) status.getTransaction();

KafkaResourceHolder<K, V> resourceHolder = txObject.getResourceHolder();

// 提交事务

resourceHolder.commit();

}

通过KafkaResourceHolder的commit来提交事务。

public void commit() {
        this.producer.commitTransaction();
}

public void commit() {

this.producer.commitTransaction();

}

3.6.2 实现提交偏移量事务操作

通过TransactionTemplate#excute来执行消费消息的逻辑

public <T> T execute(TransactionCallback<T> action) throws TransactionException {
		Assert.state(this.transactionManager != null, "No PlatformTransactionManager set");

		if (this.transactionManager instanceof CallbackPreferringPlatformTransactionManager) {
			return ((CallbackPreferringPlatformTransactionManager) this.transactionManager).execute(this, action);
		}
		else {
			TransactionStatus status = this.transactionManager.getTransaction(this);
			T result;
			try {
                // 1、处理消息逻辑和发送消息偏移量
				result = action.doInTransaction(status);
			}
			catch (RuntimeException | Error ex) {
				// Transactional code threw application exception -> rollback
				rollbackOnException(status, ex);
				throw ex;
			}
			catch (Throwable ex) {
				// Transactional code threw unexpected exception -> rollback
				rollbackOnException(status, ex);
				throw new UndeclaredThrowableException(ex, "TransactionCallback threw undeclared checked exception");
			}
             // 2、提交事务
			this.transactionManager.commit(status);
			return result;
		}
	}

public <T> T execute(TransactionCallback<T> action) throws TransactionException {

Assert.state(this.transactionManager != null, "No PlatformTransactionManager set");

if (this.transactionManager instanceof CallbackPreferringPlatformTransactionManager) {

return ((CallbackPreferringPlatformTransactionManager) this.transactionManager).execute(this, action);

}

else {

TransactionStatus status = this.transactionManager.getTransaction(this);

T result;

try {

// 1、处理消息逻辑和发送消息偏移量

result = action.doInTransaction(status);

}

catch (RuntimeException | Error ex) {

// Transactional code threw application exception -> rollback

rollbackOnException(status, ex);

throw ex;

}

catch (Throwable ex) {

// Transactional code threw unexpected exception -> rollback

rollbackOnException(status, ex);

throw new UndeclaredThrowableException(ex, "TransactionCallback threw undeclared checked exception");

}

// 2、提交事务

this.transactionManager.commit(status);

return result;

}

在上面的action.doIntransaction中在处理完成消息并调用这个操作发送偏移量

private void sendOffsetsToTransaction(Producer producer) {
            handleAcks();
            Map<TopicPartition, OffsetAndMetadata> commits = buildCommits();
            this.commitLogger.log(() -> "Sending offsets to transaction: " + commits);
            producer.sendOffsetsToTransaction(commits, this.consumerGroupId);
}

private void sendOffsetsToTransaction(Producer producer) {

handleAcks();

Map<TopicPartition, OffsetAndMetadata> commits = buildCommits();

this.commitLogger.log(() -> "Sending offsets to transaction: " + commits);

producer.sendOffsetsToTransaction(commits, this.consumerGroupId);

}

3.6.3 事务提交和提交策略比较

选择事务提交时，如果此时再设置成其他的提交策略AckMode中值：比如说依赖次数或者时间，那么这些设置也是不生效。

3.7 总结

在使用spring-kafka的消费者功能时，可以考虑ContainerProperties中常用属性有：

（1）设置主题

topics：主题

topicPattern：主题模式

topicPartions：包含topic/partions/initial offesets。

（2）提交策略的相关配置

目前分为三种:处理一条就提交、时间策略、次数策略、自己手动提交策略（spring-kafka不再负责提交）

ackMode：指定提交模式

ackCount：采用次数策略提交模式，需要指定个数阈值。

ackTime: 采用时间策略提交时，需要指定时间阈值

syncCommits 同步或异步提交

（3）事务属性的配置

transactionManager 指定一个KafkaTransactionManager对象，它封装了spring 事务管理器，实现kafka的事务功能。

（4）消费消息的业务逻辑

messageListener 需要实现MessageListener接口，实现处理消息具体业务逻辑

（5）消费者信息

groupId 消息分组

clientId 消费者名字的前缀

参考文献

官网：http://projects.spring.io/spring-kafka/

官网文档： https://docs.spring.io/spring-kafka/reference/htmlsingle/

Heart.Think.Do

Kafka(05) Spring集成Kafka之spring-kafka

1 应用实例

1.1 maven配置

1.2 生产者实例

1.2.1 配置文件

1.2.2 定义一个ProducerClient

1.2.3 测试

1.3 单个消费者实例

1.3.1 配置文件

1.3.2 定义一个messagListener

1.3.3 测试

1.4 多个消费者实例

2 实现生产者

2.1发送消息

2.2 事务相关操作

3 实现消费者

3.1 创建消费者

3.2 定时任务

3.3 处理消息模板

3.4 用户只关注处理消息逻辑

3.5 提交策略

3.6 事务性

3.6.1 KafkaTransactionManager

3.6.2 实现提交偏移量事务操作

3.6.3 事务提交和提交策略比较

3.7 总结

参考文献

Related Posts:

分类&标签
